| PDS175S |
 |
| PDS265S |
 |
| PDS390S |
| Model |
PDS175S-5C3 |
| COMPRESSOR |
| Type |
Rotary Twin Screw, Single-Stage, Oil-cooled |
Free Air Delivery
m³/min |
5.0 |
Rated Operating Pressure
kg/cm²(PSIG)(kPa) |
7(100)(690) |
Receiver Tank Capacity
m³(US gal) |
0.02(5.3) |
| Air Outlets |
20A(3/4")x3pcs |
| ENGINE |
| Make/Model |
YANMAR 4TNV88-BDHKS |
| Type |
4 cycle, water cooled,
direct injection type |
| No. of Cylinder |
4 |
| Total Displacement cc |
2,189 |
| Rated Output ps(kW)/rpm |
47.5(34.0)/3,000 |
Fuel Tank Capacity
Liters(US gal) |
90(23.8) |
Lubrication Oil Capacity
Liters(US gal) |
7.4(2.0) |
| DIMENSION & WEIGHT |
| Overal Length mm(inch) |
1,970(77.6) |
| Overal Width mm(inch) |
950(37.4) |
| Overal Height mm(inch) |
1,080(42.5) |
| Weight(Dry) |
740(1,631) |
| Weight(Wet) |
840(1,852) |
|
| |
| Model |
PDS265S-5B2 |
| COMPRESSOR |
| Type |
Rotary Twin Screw, Single-Stage, Oil-cooled |
Free Air Delivery
m³/min |
7.5 |
Rated Operating Pressure
kg/cm²(PSIG)(kPa) |
7(100)(690) |
Receiver Tank Capacity
m³(US gal) |
0.069(18.2) |
| Air Outlets |
20A(3/4")x4pcs, 50A(2")x1pc |
| ENGINE |
| Make/Model |
YANMAR 4TNV98T-NHK |
| Type |
4 cycle, water cooled,
direct injection type w/turbo charger |
| No. of Cylinder |
4 |
| Total Displacement cc |
3,318 |
| Rated Output ps(kW)/rpm |
83.2(61.2)/2,500 |
Fuel Tank Capacity
Liters(US gal) |
115(30.4) |
Lubrication Oil Capacity
Liters(US gal) |
10.5(2.8) |
| DIMENSION & WEIGHT |
| Overal Length mm(inch) |
2,050(80.7) |
| Overal Width mm(inch) |
1,200(47.2) |
| Overal Height mm(inch) |
1,250(49.2) |
| Weight(Dry) |
1,150(2,535) |
| Weight(Wet) |
1,290(2,844) |
|
| |
| Model |
PDS390S-5B1 |
| COMPRESSOR |
| Type |
Rotary Twin Screw, Single-Stage, Oil-cooled |
Free Air Delivery
m³/min |
11.0 |
Rated Operating Pressure
kg/cm²(PSIG)(kPa) |
7.1(102)(700) |
Receiver Tank Capacity
m³(US gal) |
0.098(25.9) |
| Air Outlets |
20A(3/4")x4pcs, 50A(2")x1pc |
| ENGINE |
| Make/Model |
ISUZU DD-4BG1T |
| Type |
4 cycle, water cooled,
direct injection type w/turbo charger |
| No. of Cylinder |
4 |
| Total Displacement cc |
4,329 |
| Rated Output ps(kW)/rpm |
110(80.9)/2,400 |
Fuel Tank Capacity
Liters(US gal) |
182(48.1) |
Lubrication Oil Capacity
Liters(US gal) |
13(3.4) |
| DIMENSION & WEIGHT |
| Overal Length mm(inch) |
2,600(102.4) |
| Overal Width mm(inch) |
1,300(51.2) |
| Overal Height mm(inch) |
1,400(55.1) |
| Weight(Dry) |
1,635(3,605) |
| Weight(Wet) |
1,850(4,079) |
|
|
|
 |
| PDS185S |
 |
| PDS265S |
 |
| PDS390S |
 |
| PDS655S |
 |
| PDSF530S |
 |
| PDSG750S |
 |
| PDSJ750S |
 |
| PDSF920S/G850S |
| Model |
PDS185S-6C2 |
| COMPRESSOR |
| Type |
Rotary Twin Screw, Single-Stage, Oil-cooled |
Free Air Delivery
m³/min |
5.0 |
Rated Operating Pressure
kg/cm²(PSIG)(kPa) |
7(100)(690) |
Receiver Tank Capacity
m³(US gal) |
0.02(5.3) |
| Air Outlets |
20A(3/4")x2pcs |
| ENGINE |
| Make/Model |
YANMAR 4TNV88-BDHKS |
| Type |
4 cycle, water cooled,
swirl-chamber type |
| No. of Cylinder |
4 |
| Total Displacement cc |
2,189 |
| Rated Output ps(kW)/rpm |
49.5(36.4)/3,000 |
Fuel Tank Capacity
Liters(US gal) |
90(23.8) |
Lubrication Oil Capacity
Liters(US gal) |
7.4(2.0) |
| DIMENSION & WEIGHT |
| Overal Length mm(inch) |
2,960(117) |
| Overal Width mm(inch) |
1,650(65) |
| Overal Height mm(inch) |
1,430(56.3) |
| Weight(Dry) |
860(1,896) |
| Weight(Wet) |
960(2,116) |
| Tyre Size |
175R13 8PRx2W |
|
| |
| Model |
PDS265S-4B2 |

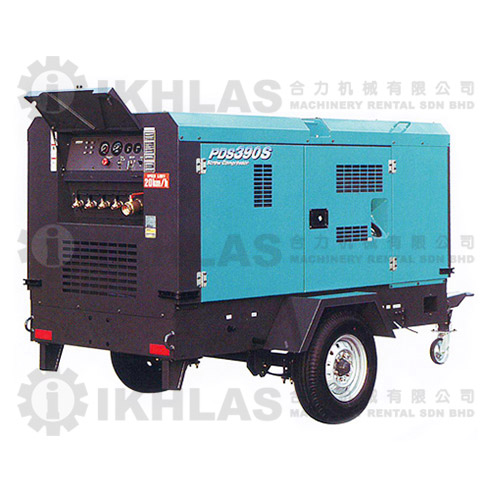

PDS390S-4B1 |
| COMPRESSOR |
| Type |
Rotary Twin Screw, Single-Stage, Oil-cooled |
Free Air Delivery
m³/min |
7.5 |
11.0 |
Rated Operating Pressure
kg/cm²(PSIG)(kPa) |
7(100)(690) |
7.1(102)(700) |
Receiver Tank Capacity
m³(US gal) |
0.069(18.2) |
0.098(25.9) |
| Air Outlets |
50A(2")x1pc,
20A(3/4")x4pcs |
50A(2")x1pc,
20A(3/4")x4pcs |
| ENGINE |
| Make/Model |
YANMAR 4TNV98T-NHK |
ISUZU DD-4BG1T |
| Type |
4 cycle, water cooled,
direct injection type
w/turbo charger |
| No. of Cylinder |
4 |
4 |
| Total Displacement cc |
3,318 |
4,329 |
Rated Output
ps(kW)/rpm |
83.2(61.2)/2,500 |
110(80.9)/2,400 |
Fuel Tank Capacity
Liters(US gal) |
115(30.4) |
180(47.6) |
Lubrication Oil Capacity
Liters(US gal) |
10.5(3.4) |
13(3.4) |
| DIMENSION & WEIGHT |
| Overal Length mm(inch) |
2,980(117.3) |
3,810(150) |
| Overal Width mm(inch) |
1,630(64.2) |
1,800(55.1) |
| Overal Height mm(inch) |
1,715(67.5) |
1,780(70.1) |
| Weight(Dry) |
1,320(2,910) |
1,825(4,023) |
| Weight(Wet) |
1,460(3,219) |
2,040(4,497) |
| Tyre Size |
6.50-14 8PRx2W |
6.50-14 8PRx2W |
|
| |
| Model |

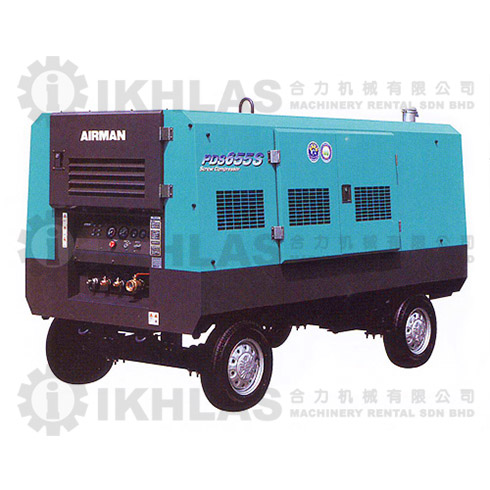

PDS655S-4B2 |
PDSF530S-4B2 |
| COMPRESSOR |
| Type |
Rotary Twin Screw, Single-Stage, Oil-cooled |
Free Air Delivery
m³/min |
18.5 |
15.0 |
Rated Operating Pressure
kg/cm²(PSIG)(kPa) |
7.1(102)(700) |
10.7(152)(1,050) |
Receiver Tank Capacity
m³(US gal) |
0.189(50) |
0.189(50) |
| Air Outlets |
50A(2")x1pc,
20A(3/4")x2pcs,
10Ax1pc |
50Ax1pc,
20Ax2pcs,
10Ax1pc |
| ENGINE |
| Make/Model |
HINO JOBC-V |
HINO JOBC-V |
| Type |
4 cycle, water cooled,
direct injection type |
4 cycle, water cooled,
direct injection type |
| No. of Cylinder |
6 |
6 |
| Total Displacement cc |
7,961 |
7,961 |
Rated Output
ps(kW)/rpm |
160(118)/2,500 |
160(118)/2,500 |
Fuel Tank Capacity
Liters(US gal) |
270(71.3) |
270(71.3) |
Lubrication Oil Capacity
Liters(US gal) |
23(6.1) |
23(6.1) |
| DIMENSION & WEIGHT |
| Overal Length mm(inch) |
3,650(143.7) |
3,650(143.7) |
| Overal Width mm(inch) |
1,685(66.3) |
1,685(66.3) |
| Overal Height mm(inch) |
2,070(81.5) |
2,070(81.5) |
| Weight(Dry) |
2,885(6,360) |
2,890(6,371) |
| Weight(Wet) |
3,225(7,110) |
3,230(7,120) |
| Tyre Size |
6.50-14 8PRx4W |
6.50-14 8PRx4W |
|
| |
| Model |

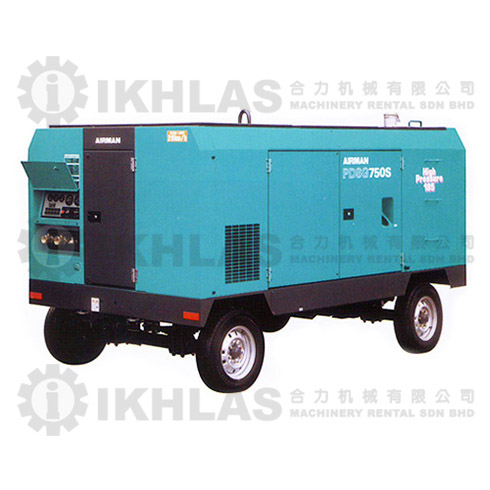

PDSG750S-4B1 |

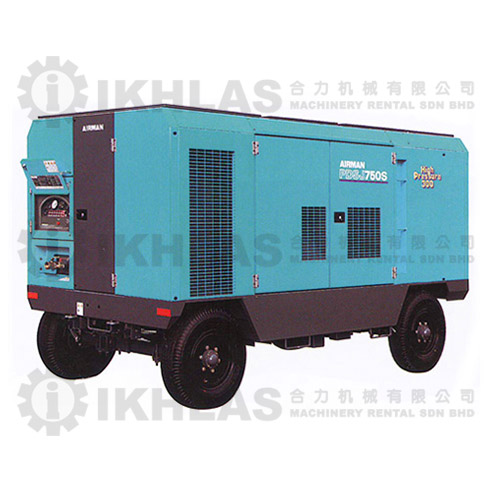

PDSJ750S-4B2 |
| COMPRESSOR |
| Type |
Rotary Twin Screw, Single-Stage, Oil-cooled |
Free Air Delivery
m³/min |
21.2 |
21.2 |
Rated Operating Pressure
kg/cm²(PSIG)(kPa) |
13(185)(1,275) |
21.2(300)(2,070) |
Receiver Tank Capacity
m³(US gal) |
0.248(65.7) |
0.168(44.4) |
| Air Outlets |
50Ax2pcs, 20Ax1pc |
50Ax1pc, 20Ax1pc |
| ENGINE |
| Make/Model |
MITSUBISHI 6D24-TE1 |
MITSUBISHI 6D24-TC |
| Type |
4 cycle, water cooled,
direct injection type
turbo charger |
4 cycle, water cooled,
direct injection type
w/turbo-charger
with after-cooler |
| No. of Cylinder |
6 |
6 |
| Total Displacement cc |
11,940 |
11,940 |
Rated Output
ps(kW)/rpm |
280(206)/2,200 |
310(228)/2,200 |
Fuel Tank Capacity
Liters(US gal) |
400(105.7) |
555(146.6) |
Lubrication Oil Capacity
Liters(US gal) |
45(11.9) |
49(12.9) |
| DIMENSION & WEIGHT |
| Overal Length mm(inch) |
4,000(157.5) |
4,350(171.3) |
| Overal Width mm(inch) |
1,900(74.8) |
1,900(74.8) |
| Overal Height mm(inch) |
2,150(84.6) |
2,350(92.5) |
| Weight(Dry) |
4,100(9,039) |
5,050(11,133) |
| Weight(Wet) |
4,600(10,141) |
5,650(12,456) |
| Tyre Size |
6.50-14 8PRx4W |
7.50-16 10PRx4W |
|
| |
| Model |

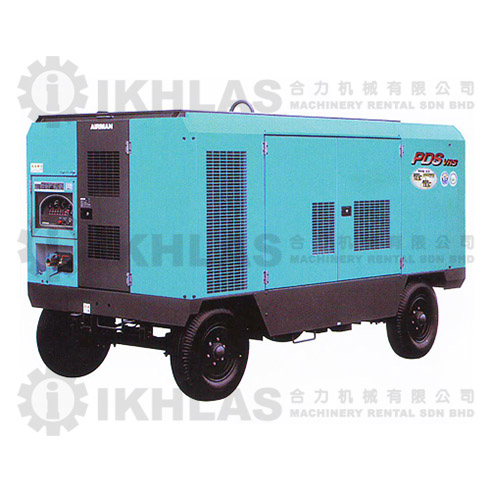

PDSF920S/G820S-4B1 |
| COMPRESSOR |
| Type |
Rotary Twin Screw, Single-Stage, Oil-cooled |
Free Air Delivery
m³/min |
25.7/23.2 |
Rated Operating Pressure
kg/cm²(PSIG)(kPa) |
10.3/13 (150/185) (1,030/1,275) |
Receiver Tank Capacity
m³(US gal) |
0.258(68.2) |
| Air Outlets |
50Ax1pc, 20Ax1pc |
| ENGINE |
| Make/Model |
MITSUBISHI 6D24-TLE2A |
| Type |
4 cycle, water cooled, direct injection type
w/turbo-charger with after-cooler |
| No. of Cylinder |
6 |
| Total Displacement cc |
11,940 |
| Rated Output ps(kW)/rpm |
324/320(238/235)/2,200/2,000 |
Fuel Tank Capacity
Liters(US gal) |
555(146.6) |
Lubrication Oil Capacity
Liters(US gal) |
49(12.9) |
| DIMENSION & WEIGHT |
| Overal Length mm(inch) |
4,350(171.3) |
| Overal Width mm(inch) |
2,000(78.7) |
| Overal Height mm(inch) |
2,445(96.3) |
| Weight(Dry) |
4,650(10,251) |
| Weight(Wet) |
5,300(11,684) |
| Tyre Size |
7.50-16 10PRx4W |
|
|
