| SDG25S |
 |
| SDG45S |
 |
| SDG60S |
 |
| SDG100S |
 |
| SDG125S/150S |
| |
 |
| SDG220S |
 |
| SDG300S |
 |
| SDG400S |
 |
| SDG500S |
|
|
| Generator Set |
| |
| Model |

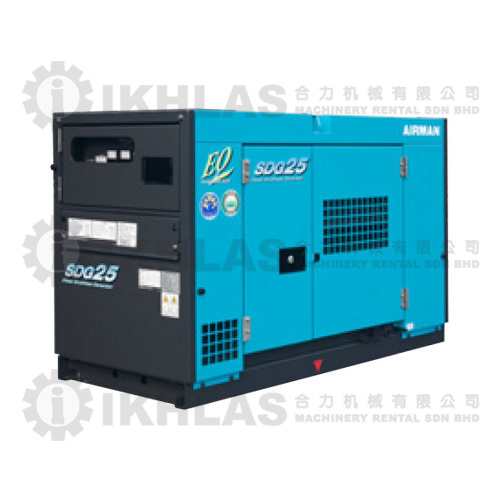

SDG25S-3B1 |

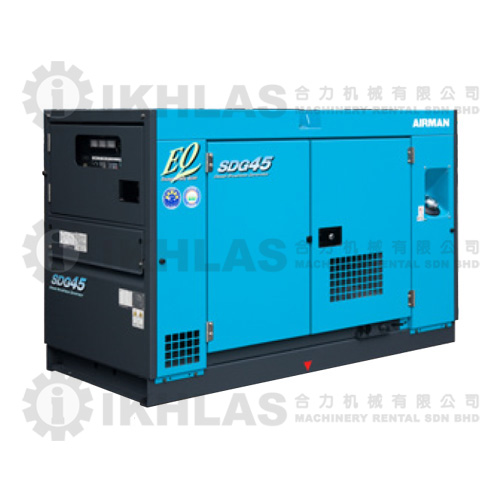

SDG45S-3A8 |
| Generator |
| Frequency (Hz) |
50 |
60 |
50 |
60 |
| Rated Output (kVA) |
20 |
25 |
37 |
45 |
| Voltage (V) |
50Hz : 200 or 380 or 400 or 415,
60Hz : 220 or 440(Dual Voltage) |
| Power Factor (%) |
80 |
| Class of rating |
Continuous |
| Exciting Method |
Brushless (with A.V.R) |
| No. of Phase |
3-Phase, 4-Wire |
| DIESEL ENGINE |
| Make and Model |
Kubota
V2403-K3A |
Kubota
V3800-DI-T-K2B |
| No. of Cylinder |
4 |
4 |
| Type(4Cycle,Water-Cooled) |
Swirl Chamber |
Direct Injection,
Turbo Charged |
| Total Displacement(L) |
2,434 |
3,769 |
| Rated Output PS(kW) |
26(19.1) |
32(23.7) |
51.7(38.0) |
62(45.6) |
| Speed(rpm) |
1,500 |
1,800 |
1,500 |
1,800 |
| FUEL |
Diesel Fuel Oil |
| Fuel Tank Capacity(L) |
70 |
100 |
Fuel Consumption
(50/75%Load)(L) |
3.0/4.0 |
3.8/5.0 |
4.4/6.4 |
5.5/8.0 |
| Lublicating Oil Capacity(L) |
9.5 |
13.2 |
| Cooling Water Capacity(L) |
7.0 |
11 |
| Battery (Capacity 5hrs)(Ah) |
80D26R(55)x1 |
80D26R(55)x1 |
| DIMENSIONS & WEIGHT |
| Overall Length(mm) |
1,550 |
1,870 |
| Overall Width(mm) |
700 |
860 |
| Overall Height(mm) |
980 |
1,220 |
| Net Dry Mass(kg) |
610 |
900 |
| Operating Mass(kg) |
680 |
1,010 |
| SOUND LEVEL |
Sound power level
in decibels (dB) |
90 |
87 |
| Sound pressure level dB(A) |
59 |
63 |
57 |
60 |
|
| |
| Model |

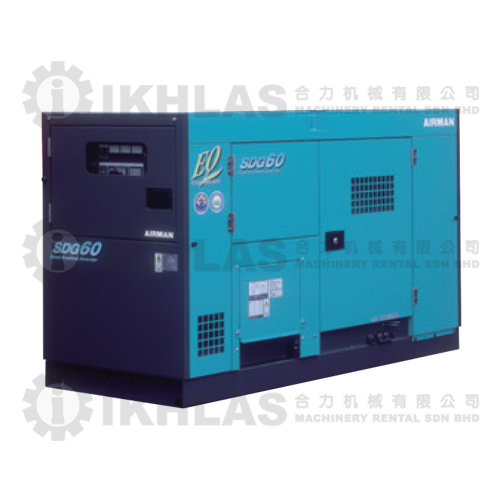

SDG60S-3A6 |

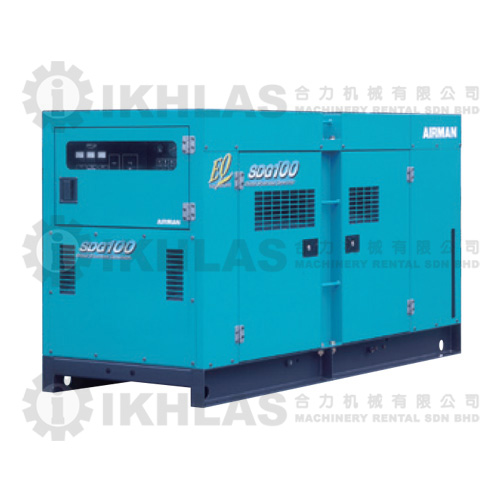

SDG100S-3A5 |
| Generator |
| Frequency (Hz) |
50 |
60 |
50 |
60 |
| Rated Output (kVA) |
50 |
60 |
80 |
100 |
| Voltage (V) |
50Hz : 200 or 380 or 400 or 415,
60Hz : 220 or 440(Dual Voltage) |
| Power Factor (%) |
80 |
| Class of rating |
Continuous |
| Exciting Method |
Brushless (with A.V.R) |
| No. of Phase |
3-Phase, 4-Wire |
| DIESEL ENGINE |
| Make and Model |
Isuzu
BB-4BG1T |
Isuzu
DD-6BG1T |
| No. of Cylinder |
4 |
4 |
| Type(4Cycle,Water-Cooled) |
Direct Injection, Turbo Charged |
| Total Displacement(L) |
4,329 |
6,494 |
| Rated Output PS(kW) |
65.4(48.1) |
78(57.4) |
100(73.6) |
124(91.2) |
| Speed(rpm) |
1,500 |
1,800 |
1,500 |
1,800 |
| FUEL |
Diesel Fuel Oil |
| Fuel Tank Capacity(L) |
135 |
225 |
Fuel Consumption
(50/75%Load)(L) |
6.0/8.6 |
7.5/10.5 |
10.2/14.5 |
13.2/19.0 |
| Lublicating Oil Capacity(L) |
14 |
18 |
| Cooling Water Capacity(L) |
15 |
24 |
| Battery (Capacity 5hrs)(Ah) |
80D26R(55)x1 |
80D31R(64)x2 |
| DIMENSIONS & WEIGHT |
| Overall Length(mm) |
2,090 |
2,600 |
| Overall Width(mm) |
860 |
1000 |
| Overall Height(mm) |
1,220 |
1,400 |
| Net Dry Mass(kg) |
1,120 |
1,640 |
| Operating Mass(kg) |
1,260 |
1,870 |
| SOUND LEVEL |
Sound power level
in decibels (dB) |
90 |
91 |
| Sound pressure level dB(A) |
59 |
63 |
61 |
64 |
|
| |
| Model |

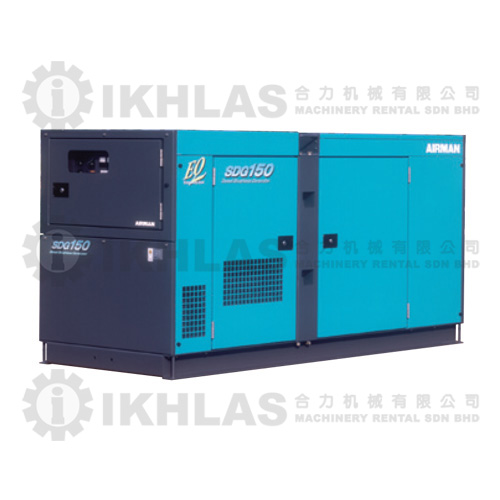

SDG125S-3A6 |
SDG150S-3A6 |
| Generator |
| Frequency (Hz) |
50 |
60 |
50 |
60 |
| Rated Output (kVA) |
100 |
125 |
125 |
150 |
| Voltage (V) |
50Hz : 200 or 380 or 400 or 415,
60Hz : 220 or 440(Dual Voltage) |
| Power Factor (%) |
80 |
| Class of rating |
Continuous |
| Exciting Method |
Brushless (with A.V.R) |
| No. of Phase |
3-Phase, 4-Wire |
| DIESEL ENGINE |
| Make and Model |
HINO
J08C-UP |
HINO
J08C-UD |
| No. of Cylinder |
6 |
6 |
| Type(4Cycle,Water-Cooled) |
Direct Injection,
Turbo Charged |
Direct Injection,
Turbo Charged,
Intercooled |
| Total Displacement(L) |
7,961 |
7,961 |
| Rated Output PS(kW) |
131(96.3) |
153(112.7) |
160(118) |
190(140) |
| Speed(rpm) |
1,500 |
1,800 |
1,500 |
1,800 |
| FUEL |
Diesel Fuel Oil |
| Fuel Tank Capacity(L) |
250 |
250 |
Fuel Consumption
(50/75%Load)(L) |
11.5/16.4 |
15.3/21.0 |
14.7/19.4 |
17.7/24.3 |
| Lublicating Oil Capacity(L) |
24.5 |
24.5 |
| Cooling Water Capacity(L) |
22 |
22 |
| Battery (Capacity 5hrs)(Ah) |
95D31R(64)x2 |
95D31R(64)x2 |
| DIMENSIONS & WEIGHT |
| Overall Length(mm) |
2,990 |
2,990 |
| Overall Width(mm) |
1,180 |
1,180 |
| Overall Height(mm) |
1,480 |
1,480 |
| Net Dry Mass(kg) |
2,050 |
2,180 |
| Operating Mass(kg) |
2,300 |
2,430 |
| SOUND LEVEL |
Sound power level
in decibels (dB) |
92 |
94 |
| Sound pressure level dB(A) |
63 |
65 |
63 |
66 |
|
| |
| Model |

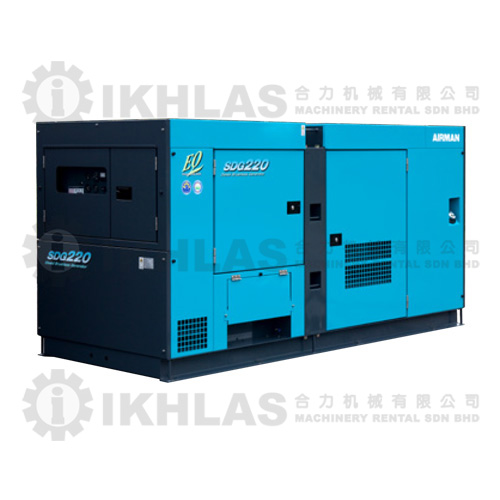

SDG220S-3A6 |
SDG300S-3A6 |
| Generator |
| Frequency (Hz) |
50 |
60 |
50 |
60 |
| Rated Output (kVA) |
200 |
220 |
270 |
300 |
| Voltage (V) |
50Hz : 200 or 380 or 400 or 415,
60Hz : 220 or 440(Dual Voltage) |
| Power Factor (%) |
80 |
| Class of rating |
Continuous |
| Exciting Method |
Brushless (with A.V.R) |
| No. of Phase |
3-Phase, 4-Wire |
| DIESEL ENGINE |
| Make and Model |
Mitsubishi
6D24-TLE2B |
Komatsu
SAA6D125E-2-B |
| No. of Cylinder |
6 |
| Type(4Cycle,Water-Cooled) |
Direct Injection,
Turbo Charged,Intercooled |
| Total Displacement(L) |
11.94 |
11.04 |
| Rated Output PS(kW) |
246(181) |
270(199) |
315(232) |
349(257) |
| Speed(rpm) |
1,500 |
1,800 |
1,500 |
1,800 |
| FUEL |
Diesel Fuel Oil |
| Fuel Tank Capacity(L) |
390 |
490 |
Fuel Consumption
(50/75%Load)(L) |
22.5/31.8 |
26.2/36.3 |
30.0/43.1 |
34.3/50.6 |
| Lublicating Oil Capacity(L) |
37 |
62 |
| Cooling Water Capacity(L) |
39 |
43.5 |
| Battery (Capacity 5hrs)(Ah) |
170F51(120)x2 |
170F51(120)x2 |
| DIMENSIONS & WEIGHT |
| Overall Length(mm) |
3,700 |
3,900 |
| Overall Width(mm) |
1,300 |
1,400 |
| Overall Height(mm) |
1,670 |
1,760 |
| Net Dry Mass(kg) |
3,240 |
3,790 |
| Operating Mass(kg) |
3,630 |
4,290 |
| SOUND LEVEL |
Sound power level
in decibels (dB) |
94 |
98 |
| Sound pressure level dB(A) |
65 |
65 |
66 |
69 |
|
| |
| Model |

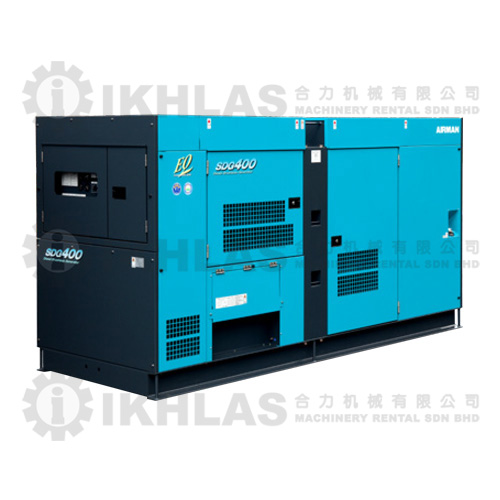

SDG400S-3A6 |

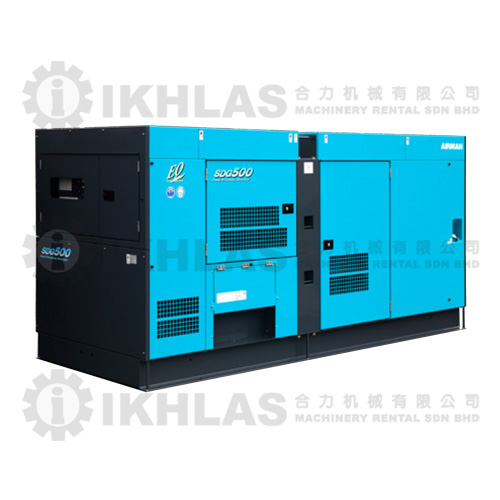

SDG500S-3A6 |
| Generator |
| Frequency (Hz) |
50 |
60 |
50 |
60 |
| Rated Output (kVA) |
350 |
400 |
450 |
500 |
| Voltage (V) |
50Hz : 200 or 380 or 400 or 415,
60Hz : 220 or 440(Dual Voltage) |
| Power Factor (%) |
80 |
| Class of rating |
Continuous |
| Exciting Method |
Brushless (with A.V.R) |
| No. of Phase |
3-Phase, 4-Wire |
| DIESEL ENGINE |
| Make and Model |
Komatsu
SA6D140E-3-A |
Komatsu
SAA6D140E-3-B |
| No. of Cylinder |
6 |
| Type(4Cycle,Water-Cooled) |
Direct Injection,
Turbo Charged |
Direct Injection,
Turbo Charged,
Intercooled |
| Total Displacement(L) |
15.24 |
15.24 |
| Rated Output PS(kW) |
421(310) |
485(357) |
519(382) |
581(427) |
| Speed(rpm) |
1,500 |
1,800 |
1,500 |
1,800 |
| FUEL |
Diesel Fuel Oil |
| Fuel Tank Capacity(L) |
490 |
490 |
Fuel Consumption
(50/75%Load)(L) |
39.7/56.6 |
46.7/65.3 |
48.4/69.2 |
55.3/78.3 |
| Lublicating Oil Capacity(L) |
79 |
91.5 |
| Cooling Water Capacity(L) |
69 |
91.5 |
| Battery (Capacity 5hrs)(Ah) |
225H52(176)x2 |
225H52(176)x2 |
| DIMENSIONS & WEIGHT |
| Overall Length(mm) |
4,150 |
4,550 |
| Overall Width(mm) |
1,300 |
1,400 |
| Overall Height(mm) |
1,400 |
1,600 |
| Net Dry Mass(kg) |
5,120 |
6,170 |
| Operating Mass(kg) |
5,670 |
6,750 |
| SOUND LEVEL |
Sound power level
in decibels (dB) |
99 |
99 |
| Sound pressure level dB(A) |
67 |
70 |
67 |
70 |
|
|
