| Link Bender |
| |
Specially design to bend rings from ø13mm to ø16mm by changing different sizes of fulcrum roller provided.
• Easy and convenience operation.
• Portable and compact size.
• Low maintenance and cost saving. |
| |
| Model |
TKRM-16 |
Working Capacity
Max. Bar Diameter (mm) |
ø16 |
| Powered |
Kubota RK-70 Water Cooled Diesel Engine or
L60 Air Cooled Engine or Equivalet |
| Standard Roller |
ø37, ø45, ø50 |
| Dimension (L x W x H) (mm) |
960 x 790 x 620 |
| Net Weight (kg) |
450 |
|
| |

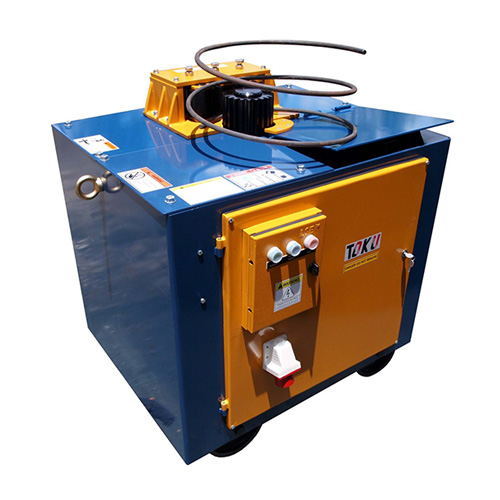

| Spiral Bender |
| |
| Model |
TKSB-25 |
| Maximum Bending Diameter |
25mm |
| Maximum Radius |
600mm |
| Minimum Radius |
120mm |
| Power |
4Kw |
| Voltage |
415v / 50Hz |
| Weight |
560kg |
| Dimension (L x W x H) (H) |
950mm x 950mm x 900mm |
|
| |
| Model |
TKSB-16 |
| Maximum Bending Diameter |
16mm |
| Maximum Radius |
300mm |
| Minimum Radius |
20mm |
| Engine |
Yanmar TF-70 Water Cooled Diesel Engine |
| Engine Power (hp/rpm) |
7 / 2400 |
| Weight |
470kg |
| Dimension (L x W x H) |
960mm x 960mm x 900mm |
|
| |
