| Vibratory Plate Compactor |
| |
| Plate Compactor with simple structure ensures long durability and easy handling of the machine. Unique design with low center of gravity gives greater stability, proof against high vibration force and versatile use. Powerful compaction achieved by eccentric rotor and total balance. |
| |
APPLICATIONS:
• Embankment
• Backfilling Work
• Roadbed Compaction
• Asphalt Surfacing Work |
| |
| Model |
TKP-60 |
| Base Plate Dimension L × W (mm) |
520 x 360 |
| Exciter Speed (rpm) |
5000 |
| Travel Speed (m/min) |
Up to 28 |
| Grade Ability (Deg) |
25 |
| Centrifugal Force (kn) |
12 |
| Min. Compaction Depth (cm) |
20 |
| Engine |
Robin EY20D or Honda GX 160 |
| Engine Type |
Air-cooled Gasoline |
| Max. Output (hp/rpm) |
5/4000 |
| Starting System |
Recoil |
| Machine Weight (kg) |
60 |
|
| |
| Model |

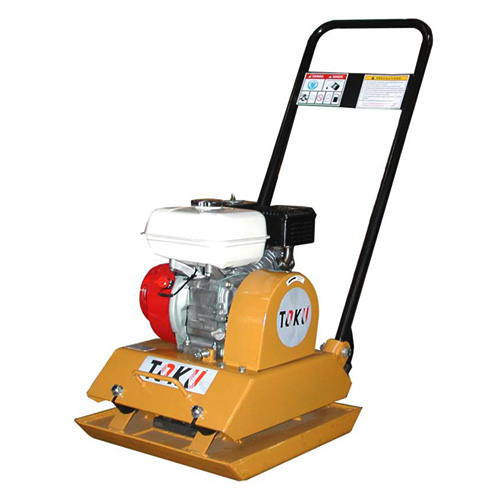

TKL-80 |
| Base Plate Dimension L × W (mm) |
506 x 432 |
| Exciter Speed (rpm) |
5200 |
| Travel Speed (m/min) |
Up to 20 |
| Grade Ability (Deg) |
Up to 15 |
| Centrifugal Force (kn) |
12 |
| Min. Compaction Depth (cm) |
20 |
| Engine |
Robin EY20D or Honda GX 160 |
| Engine Type |
Air-cooled Gasoline |
| Max. Output (hp/rpm) |
5/4000 |
| Starting System |
Recoil |
| Machine Weight (kg) |
78 |
|
| |
| Model |

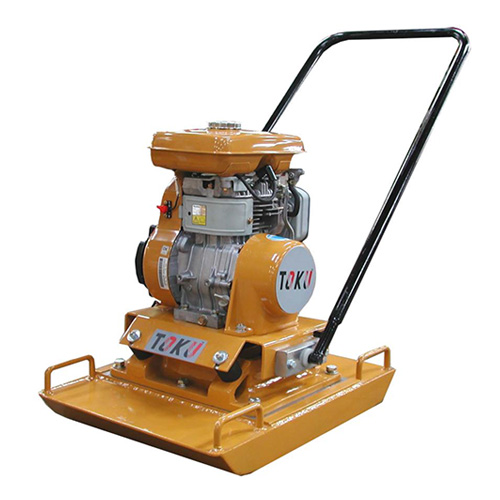

TKP-80 |
| Base Plate Dimension L × W (mm) |
460 x 610 |
| Exciter Speed (rpm) |
6100 |
| Travel Speed (m/min) |
Up to 28 |
| Grade Ability (Deg) |
Up to 35 |
| Centrifugal Force (kn) |
19.8 |
| Min. Compaction Depth (cm) |
28 |
| Engine |
Robin EY20D or Honda GX 160 |
| Engine Type |
Air-cooled Gasoline |
| Max. Output (hp/rpm) |
5/4000 |
| Starting System |
Recoil |
| Machine Weight (kg) |
78 |
|
| |
| Model |
TKP-90 |
| Base Plate Dimension L × W (mm) |
550 x 505 |
| Exciter Speed (rpm) |
5200 |
| Travel Speed (m/min) |
Up to 25 |
| Grade Ability (Deg) |
Up to 23 |
| Centrifugal Force (kn) |
16.5 |
| Min. Compaction Depth (cm) |
25 |
| Engine |
Robin EY20D or Honda GX 160 |
| Engine Type |
Air-cooled Gasoline |
| Max. Output (hp/rpm) |
5/4000 |
| Starting System |
Recoil |
| Machine Weight (kg) |
90 |
|
| |
| Model |
TKP-110 |
| Base Plate Dimension L × W (mm) |
660 x 525 |
| Exciter Speed (rpm) |
6100 |
| Travel Speed (m/min) |
Up to 30 |
| Grade Ability (Deg) |
25 |
| Centrifugal Force (kn) |
22 |
| Min. Compaction Depth (cm) |
30 |
| Engine |
Robin EY28D or Honda GX 270 |
| Engine Type |
Air-cooled Gasoline |
| Max. Output (hp/rpm) |
5/4000 |
| Starting System |
Recoil |
| Machine Weight (kg) |
110 |
|
| |
| Model |

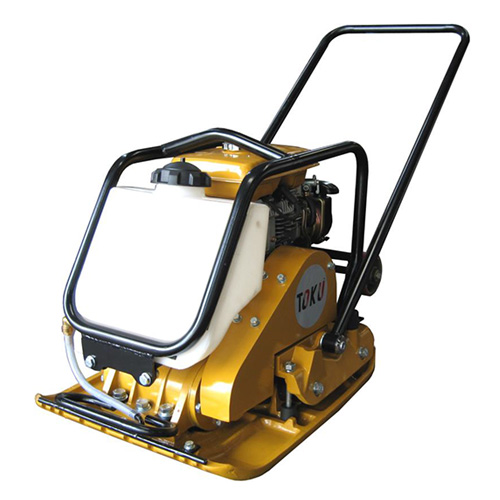

TKP-90S |
| Base Plate Dimension L × W (mm) |
590 x 500 |
| Exciter Speed (rpm) |
6500 |
| Travel Speed (m/min) |
Up to 25 |
| Grade Ability (Deg) |
Up to 25 |
| Centrifugal Force (kn) |
20 |
| Min. Compaction Depth (cm) |
28 |
| Engine |
Robin EY20D or Honda GX 160 |
| Engine Type |
Air-cooled Gasoline |
| Max. Output (hp/rpm) |
5/4000 |
| Starting System |
Recoil |
| Machine Weight (kg) |
94 |
|
