| Bar Cutter TKBC-32 |
 |
| Bar Bender TKBB-32 |
|
|

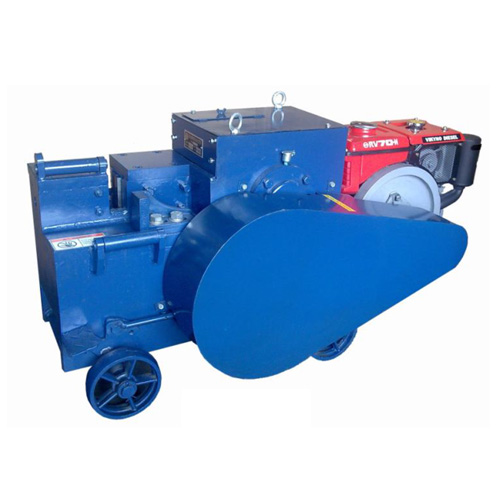

| Bar Cutter |
| |
| Model |
TKBC-32 |
| Maximum Bar Diameter (mm) |
32 |
| Working Speed (rpm) |
40 |
| Engine |
Kubota RK-50 or Equivalent |
| Engine Type |
Horizontal, water-cooled 4 cycle Diesel Engine |
| Output (HP/rpm) |
5 / 2400 |
| Weight (Kg) |
600 |
| Dimension (L x W x H) (mm) |
1300 x 660 x 750 |
|
| |

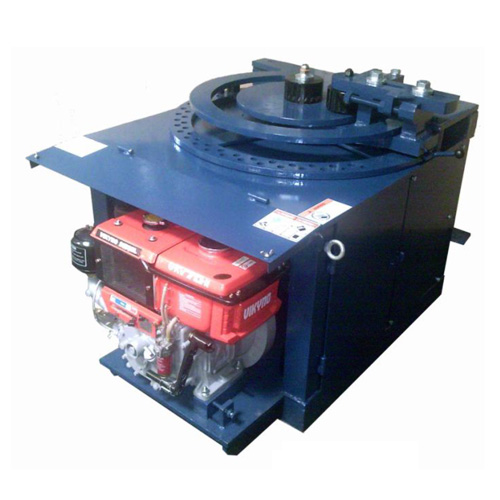

| Bar Bender |
| |
| Model |
TKBB-32 |
| Maximum Bar Diameter (mm) |
32 |
| Roller Size (mm) |
Ø64, Ø86, Ø96, Ø110, Ø125 |
| Engine |
Kubota RK-60 or Equivalent |
| Engine Type |
Horizontal, water-cooled 4 cycle Diesel Engine |
| Output (HP/rpm) |
6 / 2400 |
| Weight (Kg) |
650 |
| Dimension (L x W x H) (mm) |
1170 x 900 x 750 |
|
| |
|
