| Model |

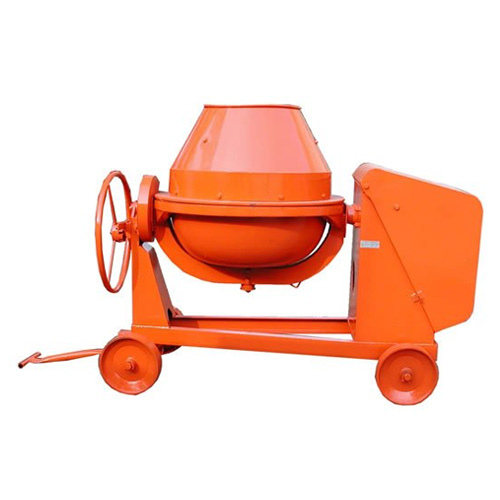

TK7TM (Manual Fed Concrete Mixer) |
| Mixing Drum |
Using heavy cast iron with mild stell pot and blade-individually renewable. |
| Capacity Unmixed litre (cu.ft) |
300 (10) |
| Capacity Mixed litre (cu.ft) |
210 (7) |
| Loading Height inch (mm) |
37 (940) |
| Drum Opening inch (mm) |
21 (533) |
| Transmission |
Drive-unit-by roller chain and sprocket.
From driving shaft to drum-by level gear and roller type bearing. |
| Wheels |
Cast iron wheels are fitted in front and rear. |
| Discharge |
Discharge height is 16in or 406mm.
Tipping position is controlled by a hand wheel and can be fixed at various mixing positions. |
| Prime Mover |
5HP singer cylinder air-cooled diesel engine. |
