| Concrete Vibrator |
| |
Concrete Vibrator TCV-32, 38, 45 and 60
Concrete Vibrator Fighter 25, 35 and 75 |
| |
| Model |
TCV-32 |
TCV-38 |
TCV-45 |
TCV-60 |
Vibrator Head
Diameter × Length (mm) |
32 x 480 |
38 x 500 |
45 x 505 |
60 x 505 |
Flexible Shaft (mm × m)
Diameter × Length |
Ø10 × 6.0 |
Ø10 × 6.0 |
Ø12 × 6.0 |
Ø12 × 6.0 |
Rubber Hose (mm × m)
Diameter × Length |
Ø28 × 6.0 |
Ø28 × 6.0 |
Ø32 × 6.0 |
Ø32 × 6.0 |
| Amplitute (mm) |
1.2 |
1.6 |
2.0 |
2.4 |
| Vibration per Minute (vpm) |
9000-12500 |
9000-12500 |
9000-12500 |
9000-12500 |
| Overall Weight (kg) |
17.0 |
17.5 |
18.0 |
23.5 |
|
| |
| Model |
Fighter-25 |
Fighter-35 |
Fighter-75 |
Vibrator Head
Diameter × Length (mm) |
25 x 423 |
35 x 423 |
75 x 459 |
Flexible Shaft (mm × m)
Diameter × Length |
Ø10 × 6.0 |
Ø10 × 6.0 |
Ø13 × 6.0 |
Rubber Hose (mm × m)
Diameter × Length |
28 × 6.0 |
28 × 6.0 |
38 × 6.0 |
| Amplitute (mm) |
1.2 |
1.4 |
2.9 |
| Vibration per Minute (vpm) |
8000-12000 |
9000-12500 |
12000-15000 |
| Overall Weight (kg) |
14.5 |
17.5 |
36.0 |
|
| |
| Concrete Vibrator TKLH-35, 45, 50 and 60 |
| |
| Model |
TKLH-35 |
TKLH-45 |
TKLH-50 |
TKLH-60 |
Vibrator Head
Diameter × Length (mm) |
Ø35 x 410 |
Ø45 x 450 |
Ø50 x 465 |
Ø60 x 500 |
Flexible Shaft (mm × m)
Diameter × Length |
Ø12 × 5.0 |
Ø12 × 5.0 |
Ø12 × 5.0 |
Ø13 × 5.0 |
Rubber Hose (mm × m)
Diameter × Length |
Ø32 × 5.0 |
Ø32 × 5.0 |
Ø32 × 5.0 |
Ø38 × 5.0 |
| Amplitute (mm) |
1.5 |
1.65 |
1.7 |
1.85 |
| Vibration per Minute (vpm) |
9000-12000 |
9000-12000 |
9000-12000 |
9000-12000 |
| Overall Weight (kg) |
17.0 |
18.0 |
20.0 |
28.5 |
|
| |

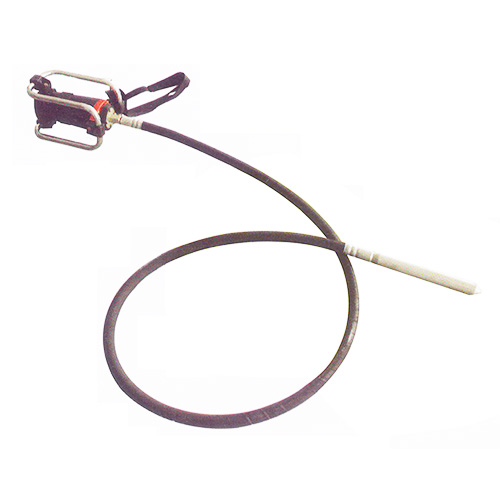

Portable Drive Unit & Concrete Vibrator
(Electric Type) |
| |
| Model |
TK-N |
| Vibrator Frequency (rpm) |
14,000 |
| Source |
220V ~ 50/60Hz |
| Power (w) |
1600 |
| Current (A) |
8 |
| Revolution (rpm) |
3000 |
| Flexible Hose & Shaft Length (m) |
4 |
| Weight (Kg) |
12 |
|
